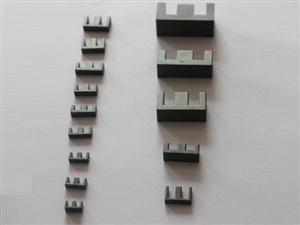

EE,EF,型功率磁芯
產品名稱： EE
發布日期： 2016-06-20
點擊數： 5556
詢價： 點擊產品詢價
二維碼：
簡述：
產品詳情
特點：引線空間大，繞制接線方便。適用范圍廣、工作頻率高、工作電壓范圍寬、輸出功率大、熱穩定性能好。
用途：廣泛應用于程控交換機電源、液晶顯示屏電源、大功率UPS逆變器電源、計算機電源、節能燈等領域。

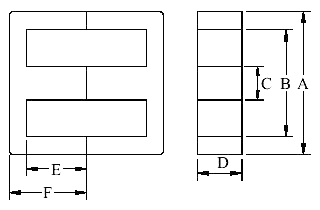

| 產品尺寸表(EE/EF型) | ||||||
| 型號 TYPE | 尺寸 Dmimensions(mm) | |||||
| A檔（外檔） | B檔（內檔） | C檔（中柱） | D檔（厚度） | E檔（內高） | F檔（總高） | |
| EE10.2 | 10.2±0.15 | 7.7min | 2.45±0.15 | 4.75±0.15 | 4.35±0.05 | 5.65±0.05 |
| EE11-7 | 12±0.3 | 8.6min | 2.6±0.2 | 7.8±0.2 | 4.6±0.2 | 6±0.2 |
| EE1310 | 13.2±0.3 | 8.8min | 3.5±0.3 | 9.6±0.3 | 4.67±0.3 | 6.53±0.3 |
| EE13A | 13.2±0.2 | 10.0min | 2.75±0.15 | 5.9±0.15 | 4.7±0.1 | 6±0.2 |
| EE13B | 13.2±0.3 | 9.8min | 2.8-0.4 | 5.9±0.3 | 4.7±0.2 | 6.3±0.2 |
| EE14 | 14.6±0.45 | 11.0min | 3.5±0.15 | 7.7±0.15 | 4.6±0.1 | 6.4±0.1 |
| EE16A | 16.3±0.3 | 11.7min | 4±0.2 | 4.8±0.2 | 5.5±0.2 | 7.6±0.2 |
| EE16B | 16±0.3 | 11.5min | 3.9±0.2 | 4.8±0.2 | 5.5±0.2 | 7.6±0.2 |
| EE1614W | 16.2±0.4 | 11.8min | 4±0.2 | 8±0.3 | 4.0±0.2 | 6.0±0.2 |
| EE1614W-L | 16.2±0.4 | 11.8min | 4±0.2 | 8±0.3 | 5.5±0.2 | 7.5±0.2 |
| EE16L | 16-0.4 | 11±0.3 | 6.2-0.2 | 5-0.2 | 13±0.2 | 15±0.2 |
| EE19A | 19.3±0.3 | 14.2min | 4.8±0.25 | 4.8±0.25 | 5.7±0.2 | 8.4±0.2 |
| EE19B | 19±0.15 | 13.7min | 4.55±0.2 | 4.9±0.2 | 5.6±0.1 | 8±0.1 |
| EE19-8 | 19.8±0.3 | 14.7min | 4.8±0.2 | 9.5±0.2 | 6±0.2 | 8.6±0.2 |
| EE19LB | 20.2±0.4 | 14.6min | 4.8±0.25 | 4.8±0.25 | 11.3±0.3 | 13.8±0.3 |
| EE20 | 20.5±0.6 | 14.5min | 4.8±0.3 | 7±0.3 | 7.2±0.2 | 9.5±0.2 |
| EE22 | 22.2±0.3 | 15.6min | 5.75±0.2 | 5.75±0.2 | 5.5±0.2 | 9.3±0.3 |
| EE22L | 22.2±0.4 | 16.5min | 5.7±0.3 | 5.9±0.3 | 11.5±0.2 | 15.3±0.2 |
| EE25 | 25.5±0.5 | 19min | 6.3±0.2 | 6.3±0.2 | 6.8±0.2 | 10.3±0.2 |
| EE28/21 | 28.5±0.4 | 19.3±0.3 | 7.15±0.3 | 10.8±0.3 | 6.65±0.25 | 10.45±0.2 |
| EE30/26 | 30±0.6 | 19.8min | 7.0±0.3 | 7.05±0.3 | 8.3±0.3 | 13±0.3 |
| EE30/30 | 30±0.6 | 19.8min | 7.0±0.3 | 7.05±0.3 | 10.2±0.3 | 15±0.3 |
| EE33 | 33±0.6 | 23.6min | 9.7±0.3 | 12.7±0.3 | 9.7±0.2 | 14.2±0.2 |
| EE3535 | 35±0.6 | 24.9min | 10±0.3 | 10±0.3 | 12.5±0.3 | 17.7±0.3 |
| EE3535-6 | 35±0.6 | 24.9min | 10±0.3 | 10±0.3 | 12.8±0.3 | 17.8±0.3 |
| EE35/9.6/9.6 | 35±0.6 | 25min | 9.6±0.3 | 9.6±0.3 | 9.8±0.3 | 14.4±0.3 |
| EE36 | 36+0.1-0.7 | 24.5min | 10.2-0.5+0 | 11.5-0.5 | 12.6+0.6 | 18-0.4 |
| EE40 | 40±0.8 | 27.6min | 11.7±0.3 | 11.7±0.3 | 10.8±0.2 | 17.6±0.3 |
| EE41 | 41±0.8 | 28.5min | 12.7±0.3 | 12.7±0.3 | 10.5±0.3 | 16.2±0.3 |
| EE4215 | 42±0.7 | 29.5min | 12±0.3 | 15±0.3 | 15.3±0.2 | 21±0.2 |
| EE4220 | 42.2±0.6 | 29.5min | 12±0.2 | 19.6±0.2 | 15.2±0.2 | 21.15±0.2 |
| EE50 | 49.5±0.8 | 33.5min | 14.7±0.5 | 31±0.5 | 12.1±0.5 | 19.6±0.5 |
| EE50/16 | 49.5±0.8 | 33.5min | 15.2±0.3 | 16±0.5 | 12.2±0.5 | 19.7±0.5 |
| EE55/21 | 55.5±0.8 | 38min | 16.7±0.3 | 20.6±0.3 | 19.3±0.3 | 27.5±0.3 |
| EE55/25 | 55.5±0.8 | 39min | 16.7±0.3 | 24±0.3 | 19.4±0.3 | 27.5±0.3 |
| EF13 | 13.1±0.3 | 9.5min | 3.5±0.2 | 3.6+0.1-0.2 | 5.2±0.1 | 6.8±0.15 |
| EF13-1 | 13.1±0.3 | 9.5min | 3.5±0.2 | 3.6+0.1-0.2 | 5.0±0.1 | 6.6±0.15 |
| EF16 | 16.7±0.3 | 12.5min | 4.5±0.2 | 4.5±0.2 | 6±0.2 | 8.2±0.2 |
| EF16B | 16.3±0.3 | 12.1min | 4.5±0.2 | 4.5±0.2 | 6±0.2 | 8.2±0.2 |
| EF20 | 20.1±0.2 | 15min | 5.7±0.2 | 5.7±0.2 | 7.5±0.2 | 10.3±0.2 |
| EF21 | 21±0.4 | 15.5min | 5.7±0.2 | 5.7±0.2 | 7.5±0.2 | 10.3±0.2 |
| EF21/10.3 | 21±0.4 | 15.5min | 5.7±0.2 | 10.3±0.2 | 7.5±0.2 | 10.3±0.2 |
| EF25 | 25.1±0.8 | 17.5min | 7.25±0.25 | 7.2±0.3 | 9.2±0.3 | 12.8±0.3 |
| EF25/11 | 25.2±0.6 | 17.5min | 7.25±0.25 | 10.25±0.3 | 9.2±0.3 | 12.7±0.3 |
| ELPD16 | 16.2±0.4 | 11.8min | 4.5±0.2 | 8±0.2 | 4.3±0.1 | 6.3±0.1 |
| ELPD17 | 17±0.25 | 12.7min | 4.5±0.15 | 8±0.2 | 3.4±0.1 | 5.4±0.1 |
| 型號 TYPE | 有效參數 | 重量（克） | 電感量 | ||||
| C1 | Le | Ae | Ve | Weight(g) | AL(nh/N2)±30% | ||
| EE10.2 | 2.23601 | 26.62373 | 11.9068 | 317.0035 | 1.51 | 800 | |
| EE11-7 | 1.31786 | 28.61008 | 21.70949 | 621.1104 | 3.2 | 1300 | |
| EE1310 | 0.8111277 | 29.73907 | 36.66386 | 1090.349 | 5.7 | 900 | |
| EE13A | 1.816091 | 30.23014 | 16.64572 | 503.2023 | 2.5 | 1000 | |
| EE13B | 1.674601 | 30.54815 | 18.24205 | 557.261 | 2.4 | 1000 | |
| EE14 | 1.147825 | 31.51053 | 27.45237 | 865.0386 | 2.6 | 1100 | |
| EE16A | 1.780299 | 36.25991 | 20.36732 | 738.5171 | 3.5 | 1200 | |
| EE16B | 1.801099 | 36.07645 | 20.03024 | 722.6201 | 3.3 | 1100 | |
| EE1614W | 30.34 | 32.4 | 985.6 | 4.9 | 2500 | ||
| EE1614W-L | 1.09 | 36.17 | 32.99 | 1193.6 | 6 | 2500 | |
| EE16L | 2.432869 | 63.10315 | 25.93775 | 1636.754 | 7.4 | 1100 | |
| EE19A | 1.650381 | 40.25251 | 24.38982 | 981.7516 | 4.5 | 1300 | |
| EE19B | 1.643223 | 39.04621 | 23.76197 | 927.8147 | 4.5 | 1380 | |
| EE19-8 | 0.8765877 | 41.82914 | 47.71815 | 1996.009 | 9.1 | 2000 | |
| EE19LB | 2.557259 | 62.7266 | 24.52884 | 1538.611 | 7.5 | 900 | |
| EE20 | 1.29707 | 45.83137 | 35.33453 | 1619.43 | 8.3 | 1900 | |
| EE22 | 1.121141 | 42.23199 | 37.66877 | 1590.827 | 7.91 | 1600 | |
| EE22L | 1.044248 | 42.34965 | 40.55517 | 1717.497 | 11.6 | 1800 | |
| EE25 | 1.212083 | 50.34595 | 41.53674 | 2091.206 | 10.4 | 1800 | |
| EE28/21 | 0.5995623 | 50.66091 | 84.49649 | 4280.669 | 22.2 | 2400 | |
| EE30/26 | 59.4 | 58.8 | 3495.6 | 19.4 | 2100 | ||
| EE30/30 | 1.119853 | 66.36591 | 59.26305 | 3933.046 | 21.3 | 2100 | |
| EE33 | 0.5652812 | 67.22053 | 118.9152 | 7993.542 | 38.8 | 3000 | |
| EE3535 | 0.81 | 80.8 | 98.8 | 7997 | 41 | 3000 | |
| EE3535-6 | 82.1 | 98.5 | 8089 | 42 | 3000 | ||
| EE35/9.6/9.6 | 0.771 | 69.8 | 90.5 | 6318.7 | 32.1 | 2800 | |
| EE36 | 0.68 | 81 | 120 | 9670 | 50 | 3200 | |
| EE40 | 0.540855 | 79.02263 | 146.1069 | 11545.75 | 56.4 | 4000 | |
| EE41 | 0.217 | 77.6 | 149.8 | 11632 | 57.8 | 4000 | |
| EE4215 | 0.5499829 | 97.53819 | 177.3477 | 17298.17 | 80.5 | 4200 | |
| EE4220 | 0.406552 | 97.27451 | 239.2671 | 23274.59 | 112.5 | 4800 | |
| EE50 | 0.1929964 | 90.93395 | 471.1692 | 42845.28 | 223 | 8000 | |
| EE50/16 | 0.079 | 92 | 242 | 22300 | 113 | 6200 | |
| EE55/21 | 0.3585761 | 124.7343 | 347.86 | 43390.06 | 210 | 5000 | |
| EE55/25 | 0.317592 | 125.6468 | 395.6232 | 49708.77 | 216.5 | 6000 | |
| EF13 | 2.585032 | 32.04185 | 12.39515 | 397.1634 | 2 | 850 | |
| EF13-1 | 2.585032 | 32.04185 | 12.39515 | 397.1634 | 2 | 850 | |
| EF16 | 1.980619 | 38.84047 | 19.61026 | 761.6717 | 3.8 | 1100 | |
| EF16B | 1.960418 | 38.4405 | 19.60832 | 753.7538 | 3.7 | 1100 | |
| EF20 | 1.544608 | 47.82669 | 30.96364 | 1480.889 | 7.5 | 1400 | |
| EF21 | 1.51 | 48.7 | 32.1 | 1565 | 7.7 | 1400 | |
| EF21/10.3 | 0.83 | 48.7 | 58 | 2828 | 14.2 | 2700 | |
| EF25 | 1.104638 | 58.50667 | 52.96458 | 3098.781 | 15.3 | 1800 | |
| EF25/11 | 0.806 | 59.37 | 73.6 | 4370.8 | 21.7 | 2700 | |
| ELPD16 | 0.913 | 31.1 | 33.9 | 1058.8 | 5.2 | 3000 | |
| ELPD17 | 27 | 33.3 | 899.8 | 5.2 | 2500 | ||
注：AL值測試條件為1KHz,0.25v,100Ts,25±3℃
Pc值測試條件為100KHz,200mT,100℃
